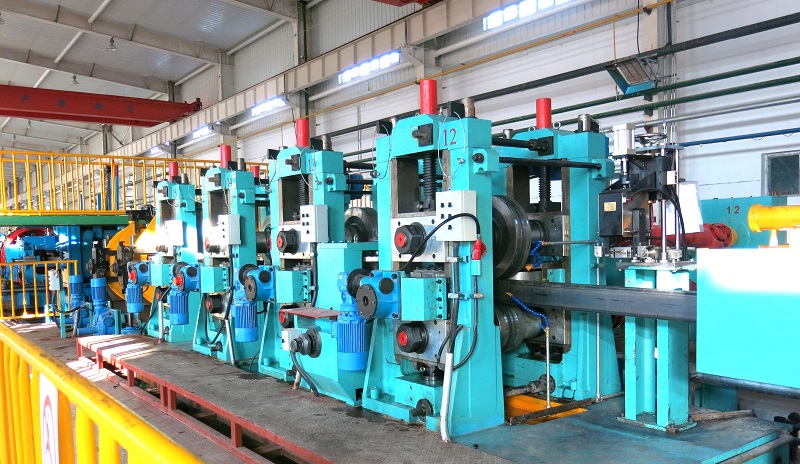

ERW426 welded pipe mill

Short Description:

ERW426 welded tube Mill, ERW426welded pipe mill, Pipe Processing Machines , steel profile Making Machine, Pipe making Machine, Pipe Production Line, Round Tube Mill, Square&Rectanular Pipe making Machine ,Hollow Section Pipe making Machine, Structural Welded Pipe making Machine, Steel Pipe making Machine

Because the ERW426 welded pipe mill is a tailored-made machine , We can design it according to customer’s requirements.


Product Detail

Product Tags

Production Description

ERW426Tube mil/oipe mil/welded pipe production/pipe making machine is used to Produce steel pines of 219mm~426mm in OD and 5.0mm~16.0mm in wall thickness, as well as  corresponding round tube, square tube and special-shaped tube.

Application: Gl, Construction, Automotive, General Mechanical tubing, Furniture, Agriculture, Chemistry, 0il, Gas, Conduit, Contructur

Product

ERW426mm  Tube  Mill

Applicable Material

HR/CR,Low Carbon Steel Strip Coil,Q235,S2 35,Gi Strips.

ab≤550Mpa,as≤235MPa

Pipe cutting Length

3.0~12.0m

Length Tolerance

±1.0mm

Surface

With Zinc Coating or without

Speed

Max.Speed:≤20m/min

(can customized according to customer's re quirements)

Others

All the pipe is high frequency welded

Both inner and outer welded stab has been

removed

Material of roller

Cr12 or GN

Squeeze roll

H13

Scope of welded pipe equipm ent

Hydraulic double-Mandrel un-coiler

Hydraulic  Shear&Automatic  Welding Horizontal  Accumulator

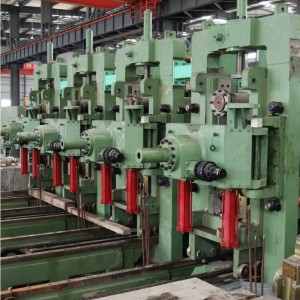

Forming&Sizing   Machine

Electric Control System

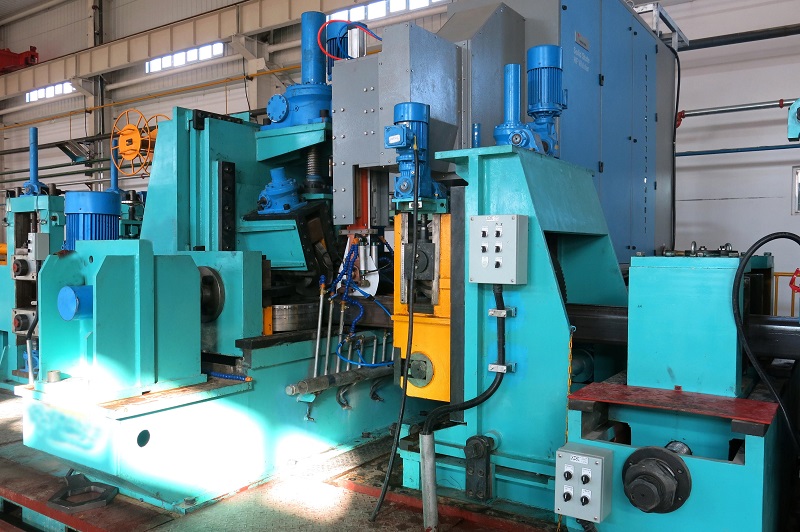

Solid State H.F.Welder (AC or DC Driver) Computer Flying Saw/Cold Cutting Saw

Run Out table

All auxiliary equipment and accessories, such as uncoiler, motor, bearing, cut ting saw, roller, hf,etc., All are top brands. The quality can be guaranteed.

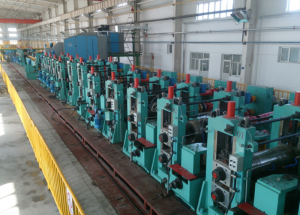

Process Flow

Steel Coil→ Double-arm Uncoiler→Shear and End Cuting & Welding →Coil Accumulator→Forming (Flattening Unit + MainDriving Unit +Forming Unit + Guide Unit + High Frequency lnduction Welding Unit + Squeeze Roller)→ Deburing→Water Cooling→Sizing & Straightening → Flying Saw Cutting → Pipe Conveyor → Packaging → Warehouse Storage

Advantages

1. High Precision

2. High Production efficiency,Line speed can be up to 130m/min

3. High Strength,The machine works stably at a high speed, which improves product quality.

4. High Good product rate, reach to 99%

5. Low wastage, Low unit wastage and low production cost.

6. 100% interchangeability of the same parts of the same equipment

Specification

Raw Material

Coil Material

Low Carbon Steel,Q235,Q195

Width

680mm-1600mm

Thickness:

5.0mm-16.0mm

Coil ID

φ610- φ760mm

Coil OD

Max :φ2000mm

Coil Weight

15-20Tons

Production Capacity

Round Pipe

219mm-426mm



Square & Rectangular Pipe

150*150mm-350*350mm

100*200mm-300*400mm



Wall Thickness

4.0-16.0mm(Round  Pipe)

4.0-15.0mm(Square Pipe)



Speed

Max.30m/min



Pipe Length

3m-12m

Workshop Condition

Dynamic Power

380V,3-phase,

50Hz(depends on local facilities)



Control Power

220V, single-phase, 50 Hz

Size of the whole line

140mX11m(L*W)

Company Introduction

Hebei SANSO Machinery Co.,LTD is a high-tech enterprise registeredin Shijiazhuang City. Hebei Province. lt specialized in Developing and Manufacturing for the complete set of equipments and relatedtechnical service of High Frequency Welded pipe Production Lineand Large-size Square Tube Cold Forming Line.

Hebei sansoMachinery Co.,LTD With more than 130 sets all typesof CNC machining equipment, Hebei sanso Machinery Co.,Ltd., manufactures and exported to over 15 countries of welded tube/pipe mill, cold roll forming machine and slitting line, as well as auxiliary equipment for more than 15 years.

sanso Machinery, as a partner of users, provides not only high precision machine products, but also technical support everywhere &anytime.
