ERW32 welded tube mill
Production Description

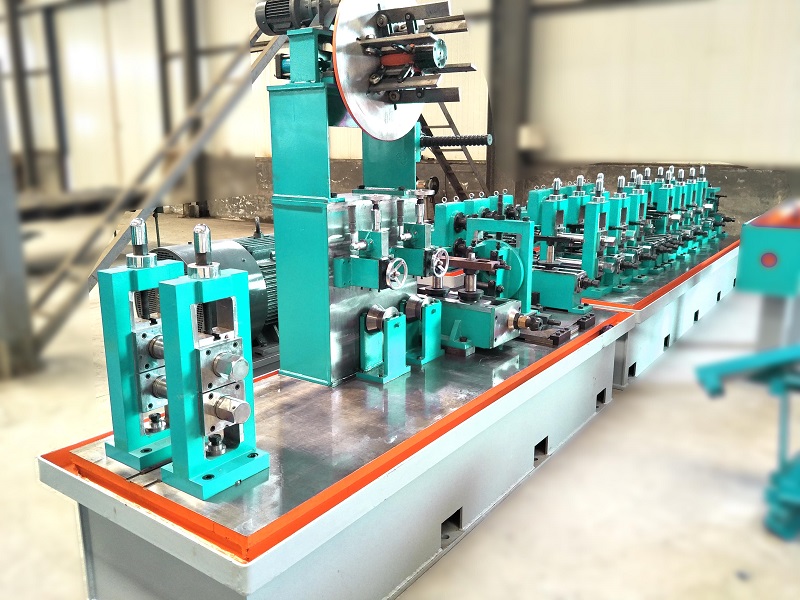

ERW32Tube mil/oipe mil/welded pipe production/pipe making machine is used to Produce steel pines of 8mm～32mm in OD and 0.4mm～2.0mm in wall thickness, as well as corresponding round tube, square tube and special-shaped tube.
Application: Gl, Construction, Automotive, General Mechanical tubing, Furniture, Agriculture, Chemistry, 0il, Gas, Conduit, Contructur
|
Product |
ERW32mm Tube Mill |
|
Applicable Material |
HR/CR,Low Carbon Steel Strip Coil,Q235,S2 35,Gi Strips. ab≤550Mpa,as≤235MPa |
|
Pipe cutting Length |
3.0～12.0m |
|
Length Tolerance |
±1.0mm |
|
Surface |
With Zinc Coating or without |
|
Speed |
Max.Speed:≤140m/min (can customized according to customer's re quirements) |
|
Others |
All the pipe is high frequency welded Both inner and outer welded stab has been removed |
|
Material of roller |
Cr12 or GN |
|
Squeeze roll |
H13 |
|
Scope of welded pipe equipm ent |
Hydraulic double-Mandrel un-coiler Hydraulic Shear&Automatic Welding Horizontal Accumulator Forming&Sizing Machine Electric Control System Solid State H.F.Welder (AC or DC Driver) Computer Flying Saw/Cold Cutting Saw Run Out table |
|
All auxiliary equipment and accessories, such as uncoiler, motor, bearing, cut ting saw, roller, hf,etc., All are top brands. The quality can be guaranteed. |
|
Process Flow
Steel Coil→ Double-arm Uncoiler→Shear and End Cuting & Welding →Coil Accumulator→Forming (Flattening Unit + MainDriving Unit +Forming Unit + Guide Unit + High Frequency lnduction Welding Unit + Squeeze Roller)→ Deburing→Water Cooling→Sizing & Straightening → Flying Saw Cutting → Pipe Conveyor → Packaging → Warehouse Storage
Advantages
1. High Precision
2. High Production efficiency,Line speed can be up to 130m/min
3. High Strength,The machine works stably at a high speed, which improves product quality.
4. High Good product rate, reach to 99%
5. Low wastage, Low unit wastage and low production cost.
6. 100% interchangeability of the same parts of the same equipment
Specification
|
Raw Material |
Coil Material |
Low Carbon Steel,Q235,Q195 |
|
Width |
35mm-120mm |
|
|
Thickness: |
0.4mm-2.0mm |
|
|
Coil ID |
φ450- φ520mm |
|
|
Coil OD |
Max :φ1200mm |
|
|
Coil Weight |
1.0-1.5.Tons |
|
|
Production Capacity |
Round Pipe |
20mm-50mm |
|
|
Square & Rectangular Pipe |
8*8mm-25*25mm |
|
|
Wall Thickness |
04-2.0mm(Round Pipe) 0.4-1.5mm(Square Pipe) |
|
|
Speed |
Max.140m/min |
|
|
Pipe Length |
3m-12m |
|
Workshop Condition |
Dynamic Power |
380V,3-phase, 50Hz(depends on local facilities) |
|
|
Control Power |
220V, single-phase, 50 Hz |
|
Size of the whole line |
50mX5m(L*W) |
|
Company Introduction
Hebei SANSO Machinery Co.,LTD is a high-tech enterprise registeredin Shijiazhuang City. Hebei Province. lt specialized in Developing and Manufacturing for the complete set of equipments and relatedtechnical service of High Frequency Welded pipe Production Lineand Large-size Square Tube Cold Forming Line.
Hebei sansoMachinery Co.,LTD With more than 130 sets all typesof CNC machining equipment, Hebei sanso Machinery Co.,Ltd., manufactures and exported to over 15 countries of welded tube/pipe mill, cold roll forming machine and slitting line, as well as auxiliary equipment for more than 15 years.
sanso Machinery, as a partner of users, provides not only high precision machine products, but also technical support everywhere &anytime.
